Transparent OLED
See the unseen.
Sleek transparency.

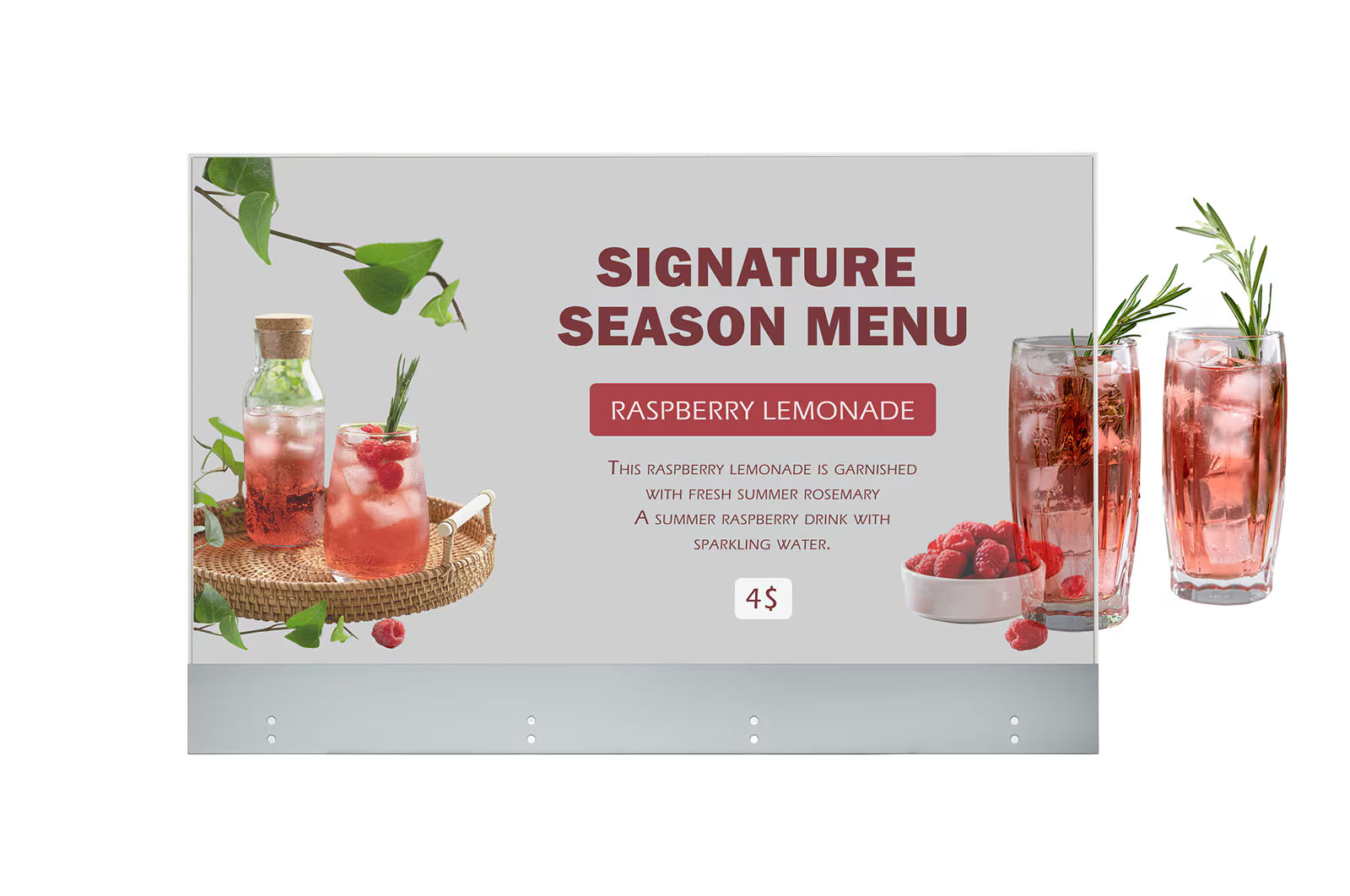

Experience visual innovation where content meets open space. Ultra-clear transparency blends with high-contrast OLED to transform retail, lounge, and modern interiors.
✨ 43% transparency (SET)
Sleek elegance in transparency

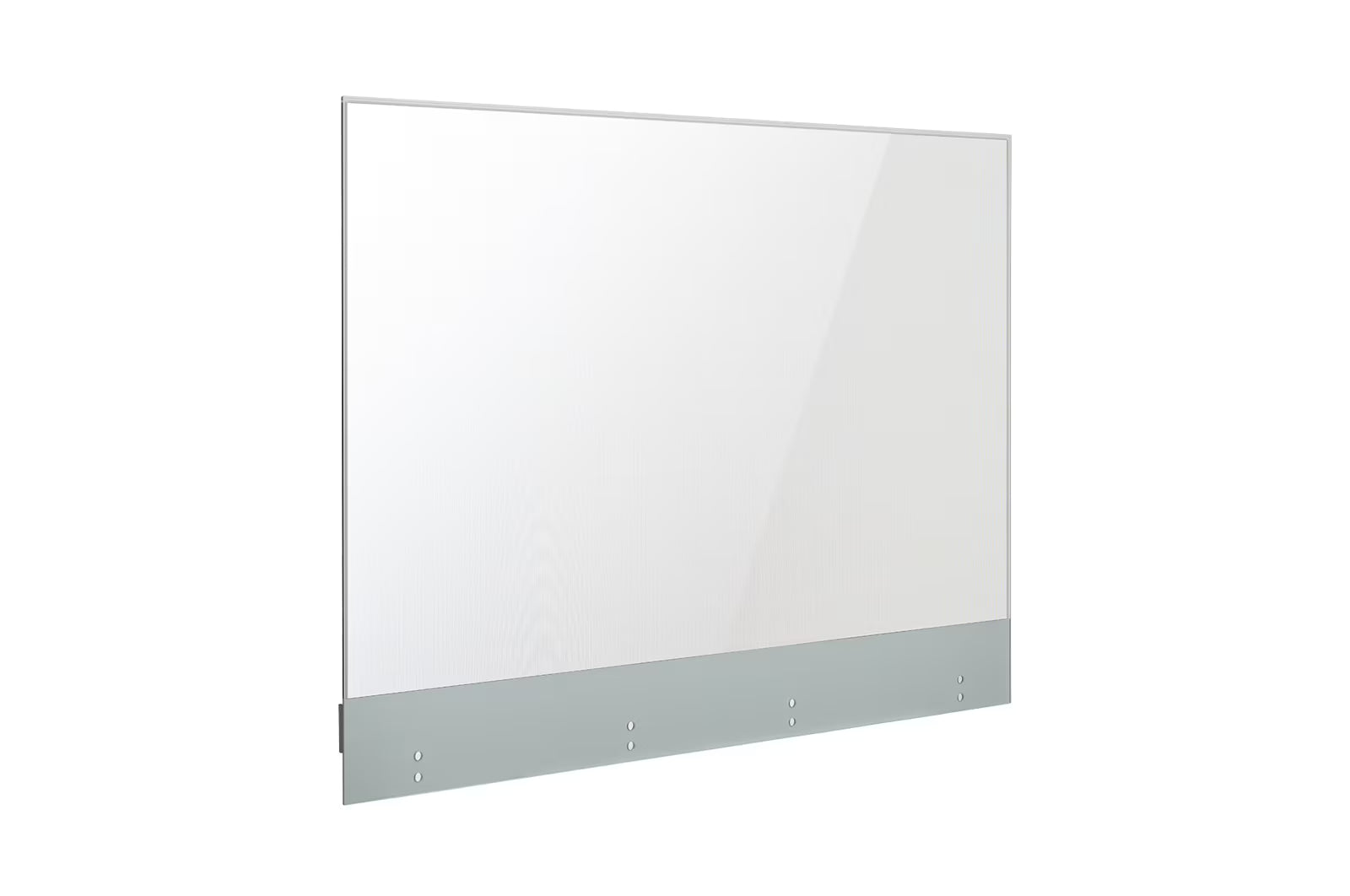

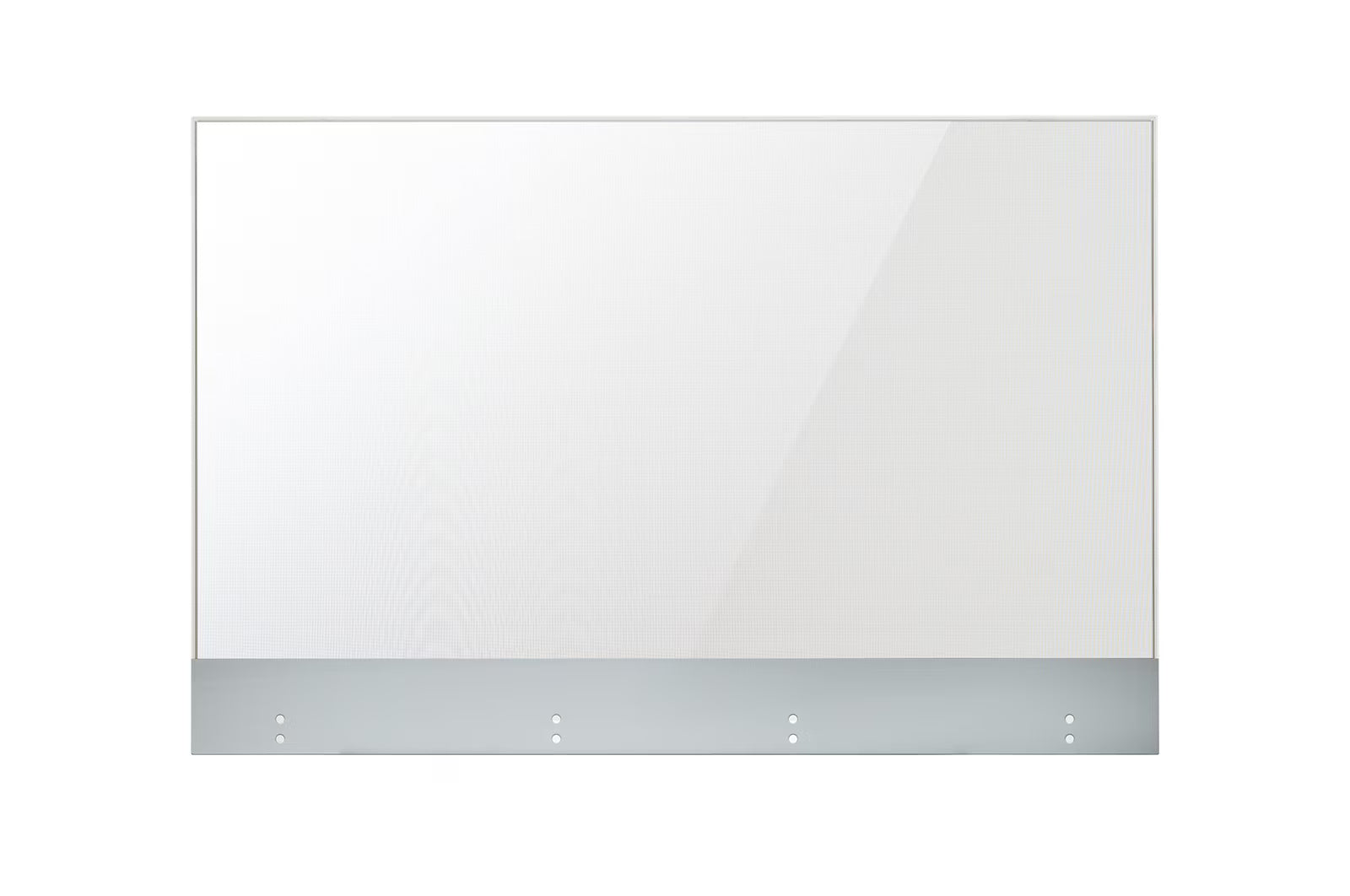

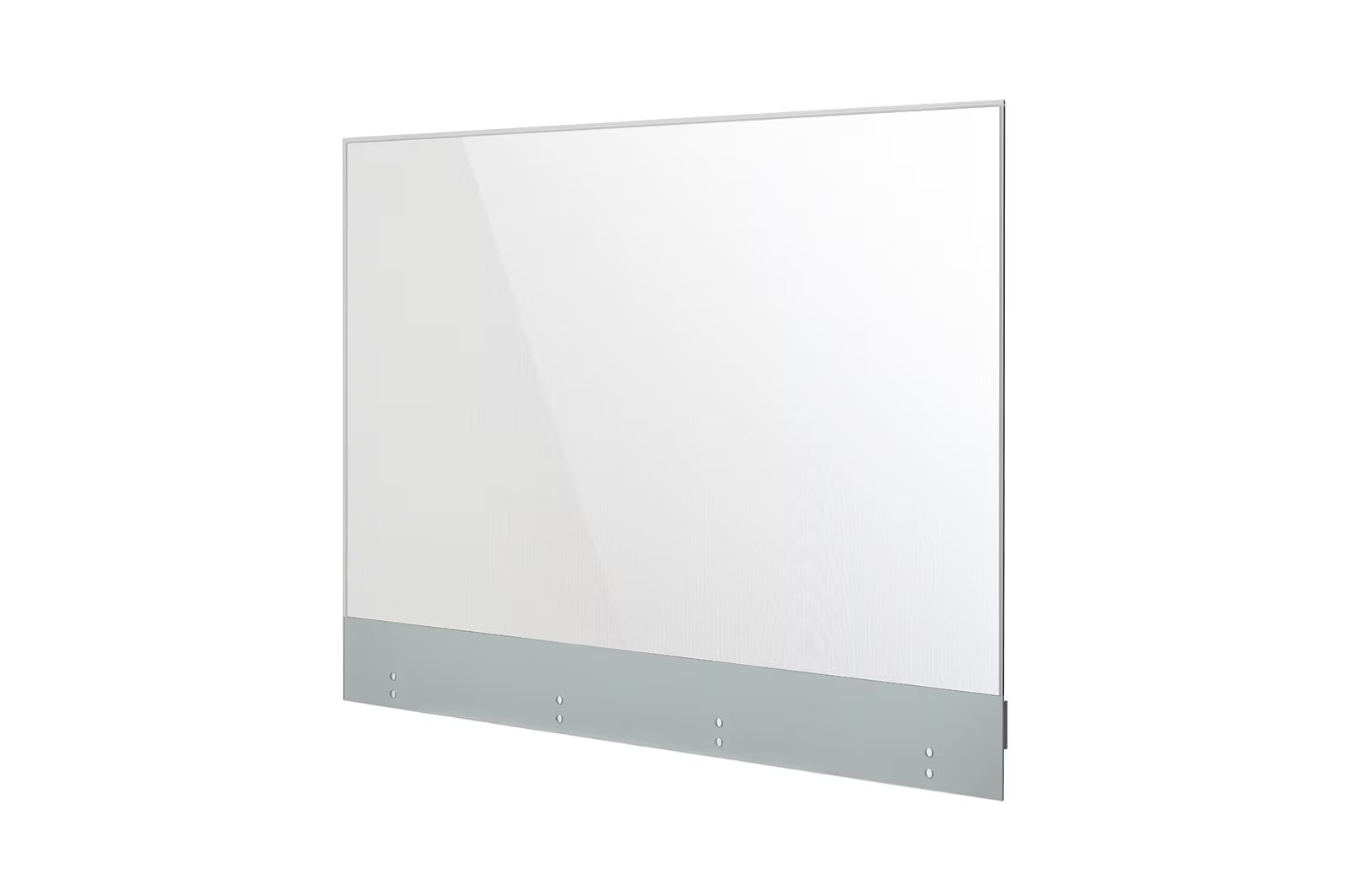

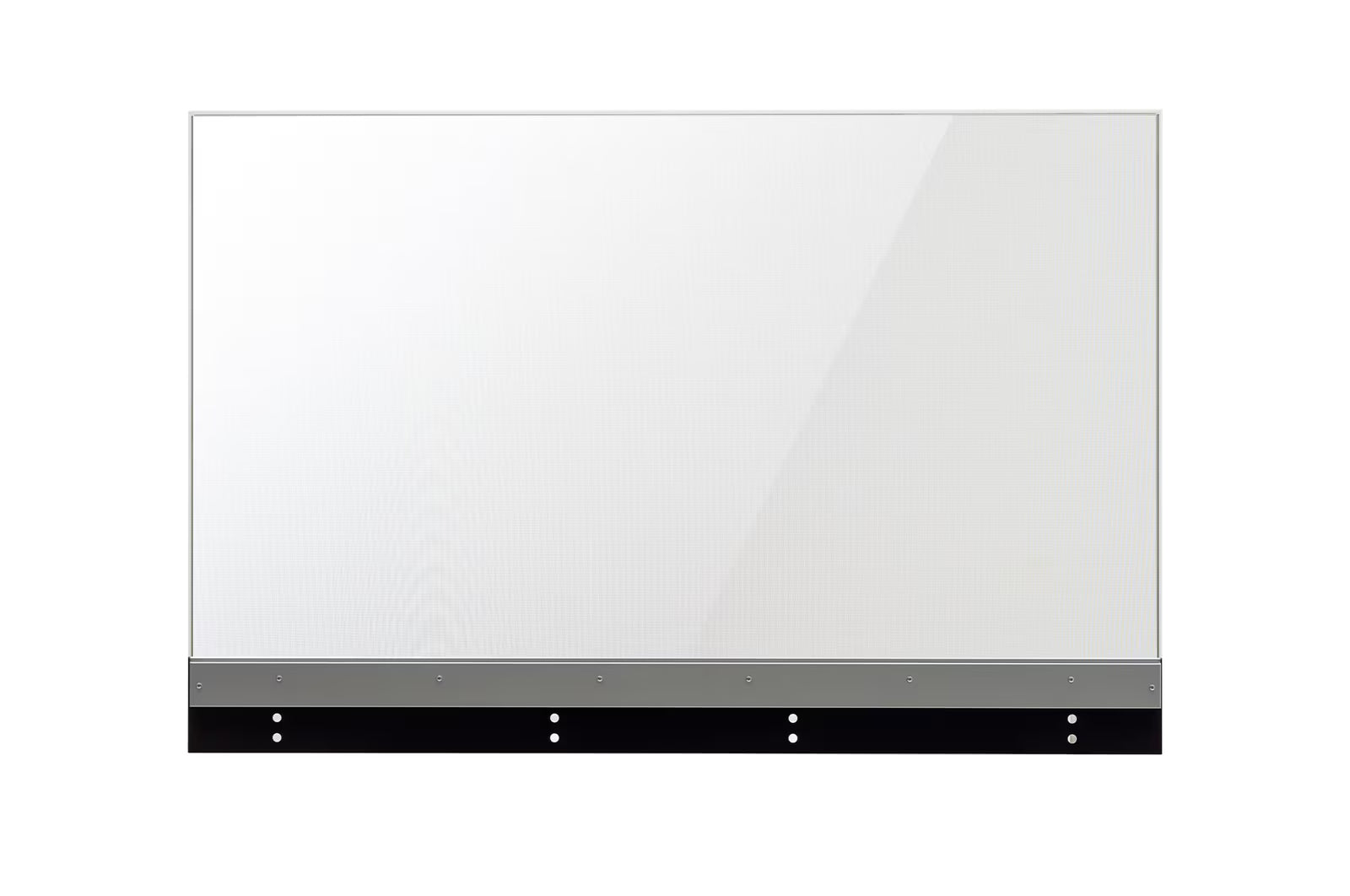

Connecting spaces, creating openness. This semi‑assembled display seamlessly integrates into existing structures and high‑end interiors, adding a futuristic layer without blocking the view behind.
📺 DISPLAY PERFORMANCE
Screen Size 55" OLED
Resolution 1920x1080 (FHD)
Aspect Ratio 16:9
Brightness 200 / 600nit (APL 100%/25%)
Contrast Ratio 200,000 : 1
Color Gamut DCI 90% / BT709 110%
Viewing Angle 178° x 178°
Response Time 0.1ms (G to G), 8ms (MPRT)
Color Depth 10bit, 1.07B colors
Surface Treatment Haze 3% (SET), Hard coating 5H
✨ TRANSPARENCY & PROTECTION
Transparency (SET) 43%
Protection Glass 3.0mm, Chemical strengthening
Anti-Reflective Yes (Film)
Shatter-Proof Yes
Bezel Color Transparent

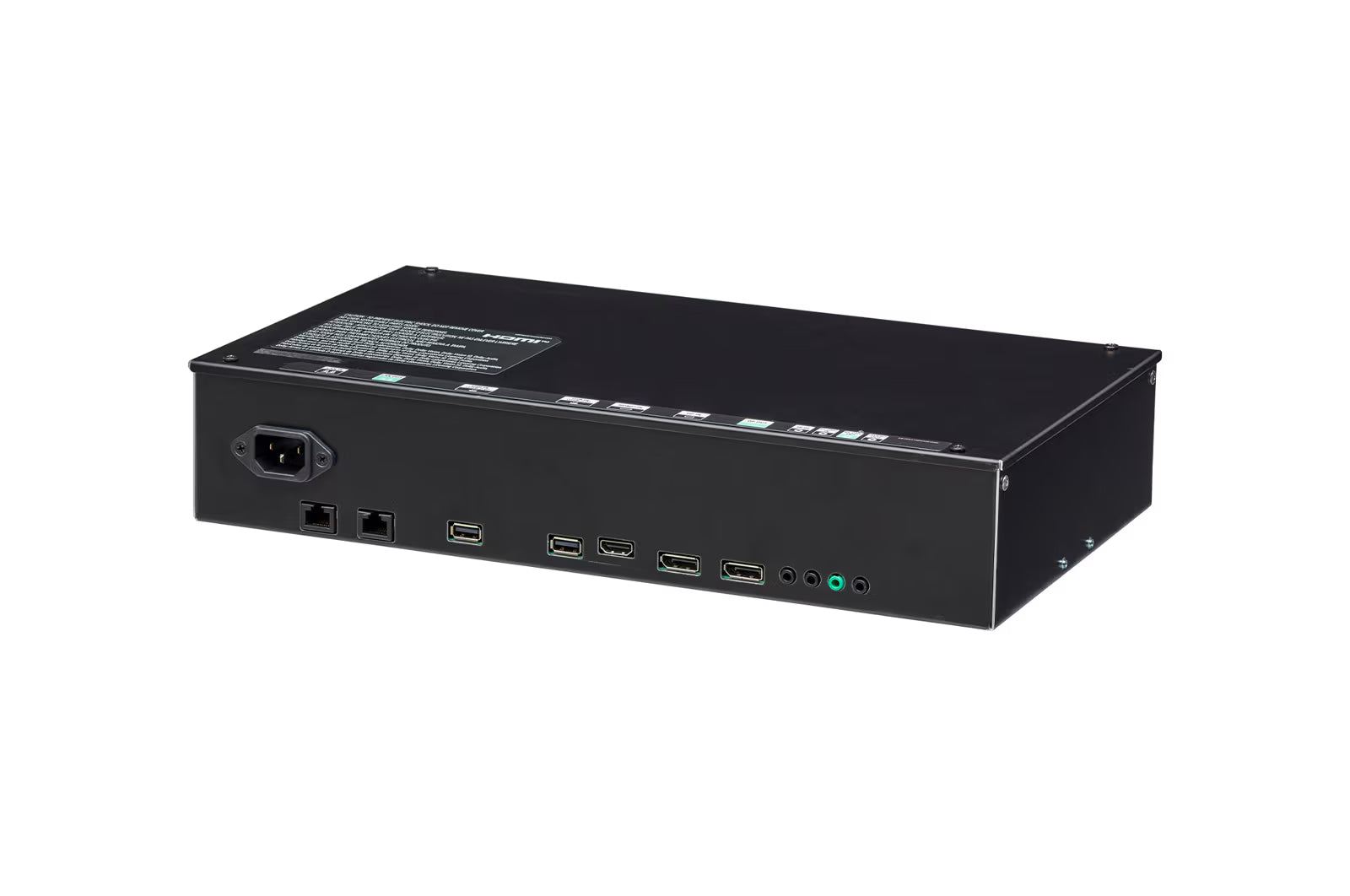

🔌 CONNECTIVITY
HDMI IN 1 (HDCP 2.2/1.4)
DP IN / OUT Yes(1) / Yes(1)
USB Ports USB2.0 Type A (2)
RS232C / RJ45 IN+OUT / IN+OUT
Audio Out / IR Yes / Yes (External IR Receiver)
Daisy Chain Input HDMI, DP / Output DP
⚙️ SMART FEATURES & OS
Operating System webOS 7.5
Internal Memory 16GB eMMC
Local Contents Scheduling Yes
Group Manager / Fail over Yes / Yes
Screen Rotation Portrait / Landscape
Gapless Playback / Tile Mode Yes / Yes
Wake on LAN / HDMI-CEC Yes / Yes
📐 MECHANICAL & POWER
Monitor Dimensions (Head) 1225.5 x 810.1 x 14.6 mm

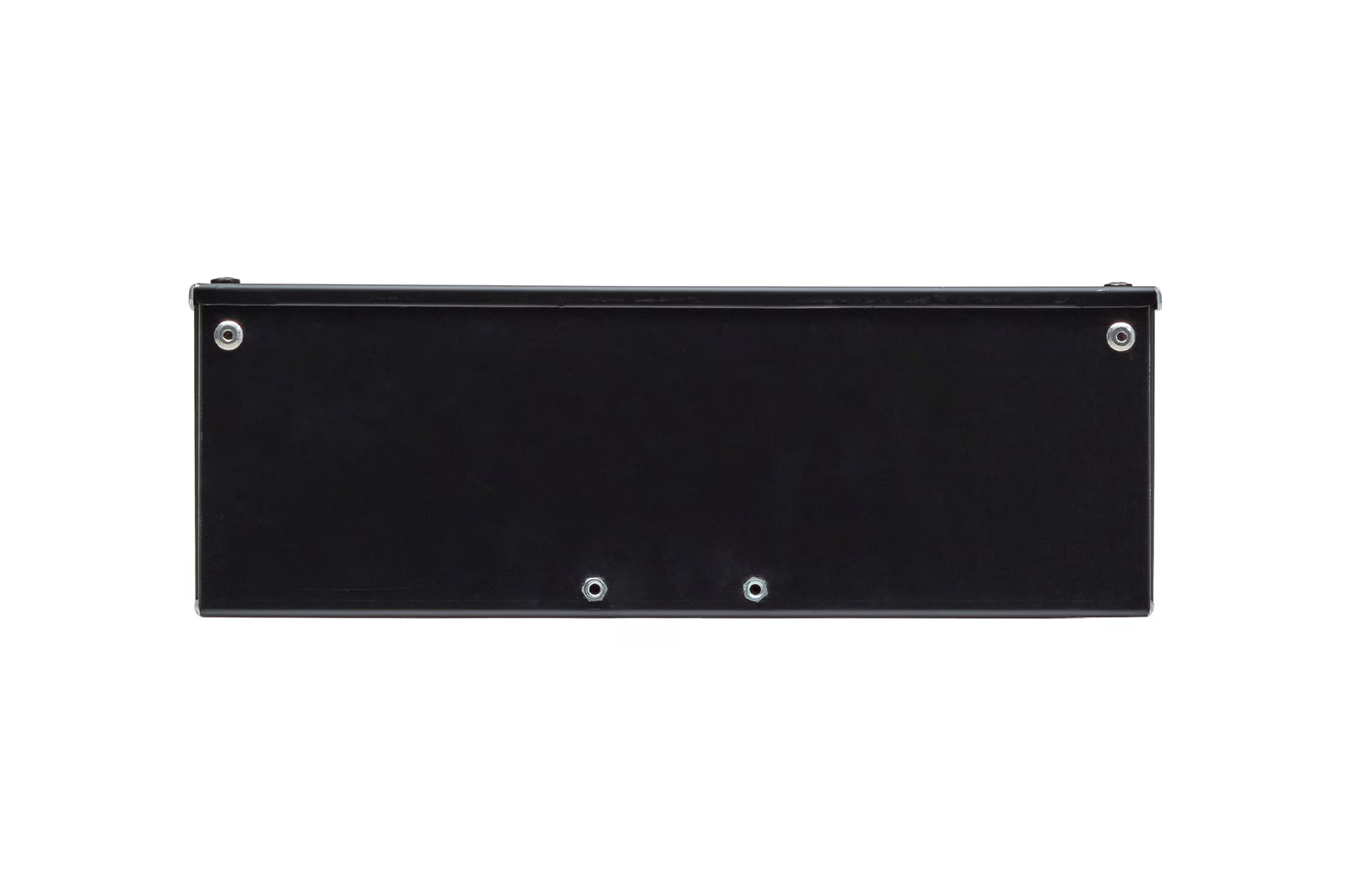

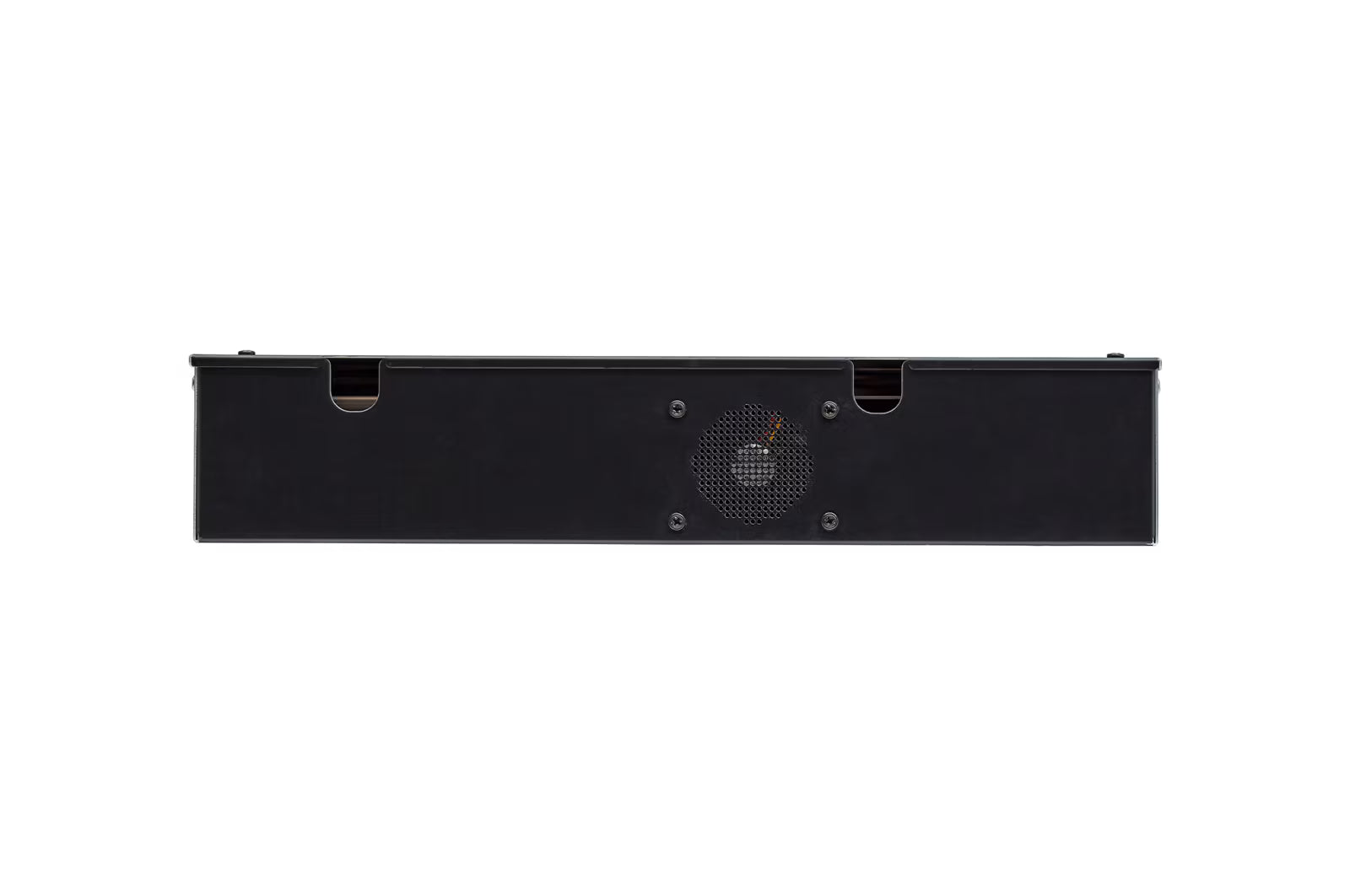

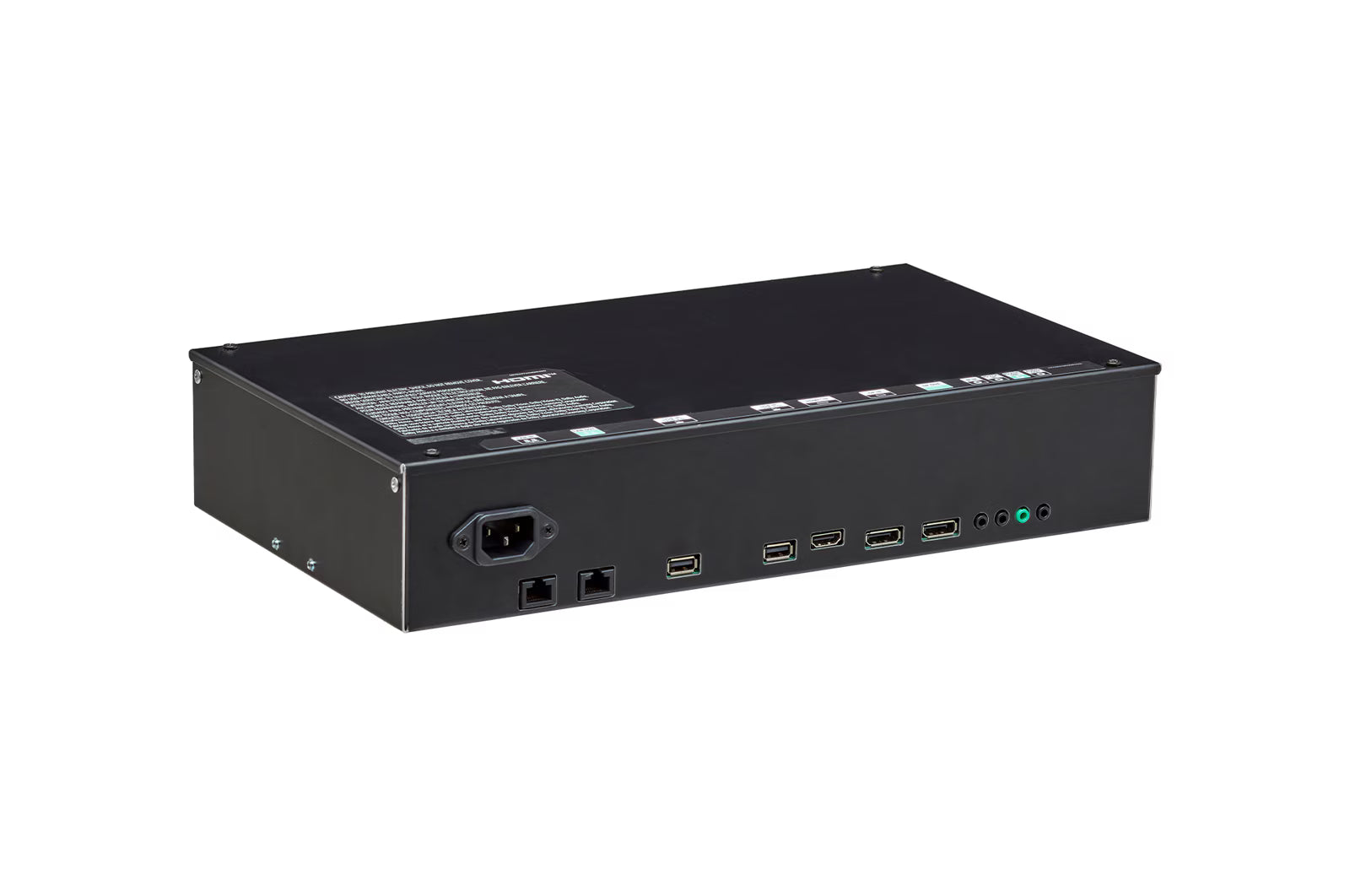

Signage Box (W x H x D) 381.6 x 217.6 x 73.6 mm
Weight (Head / Box) 11.6kg / 2.6kg
Bezel Width (T/R/L/B) 7.9 / 7.9 / 7.9 / 121.8 mm
Power Consumption (Typ.) 70W (IEC 62087)
Max. / BTU 230W / 785 BTU/Hr(Max.)
Operation Temp / Humidity 0°C~40°C / 10%~80%
Lifetime (Typ.) 30,000 Hrs
Operation Hours 18/7 (Moving Content Only)
📦 WHAT'S IN THE BOX
Remote Controller Power Cord IR Receiver DP Cable LAN Cable RS232 Cable MCX Cables Screw Kit Cover Shield QSG
Includes mounting screws, cable holders, wing bracket, and rubber damper.
🛡️ COMPATIBILITY & CERTIFICATION
Safety / EMC CB / NRTL · FCC Class A / CE
Software CMS SuperSign CMS, Control+, Cloud
Mobile CMS / Connected Care Yes / Yes
OSD Languages 23+ Languages
DPM / Power off 0.5W / 0.5W
120Hz Refresh Rate
18/7 Operation

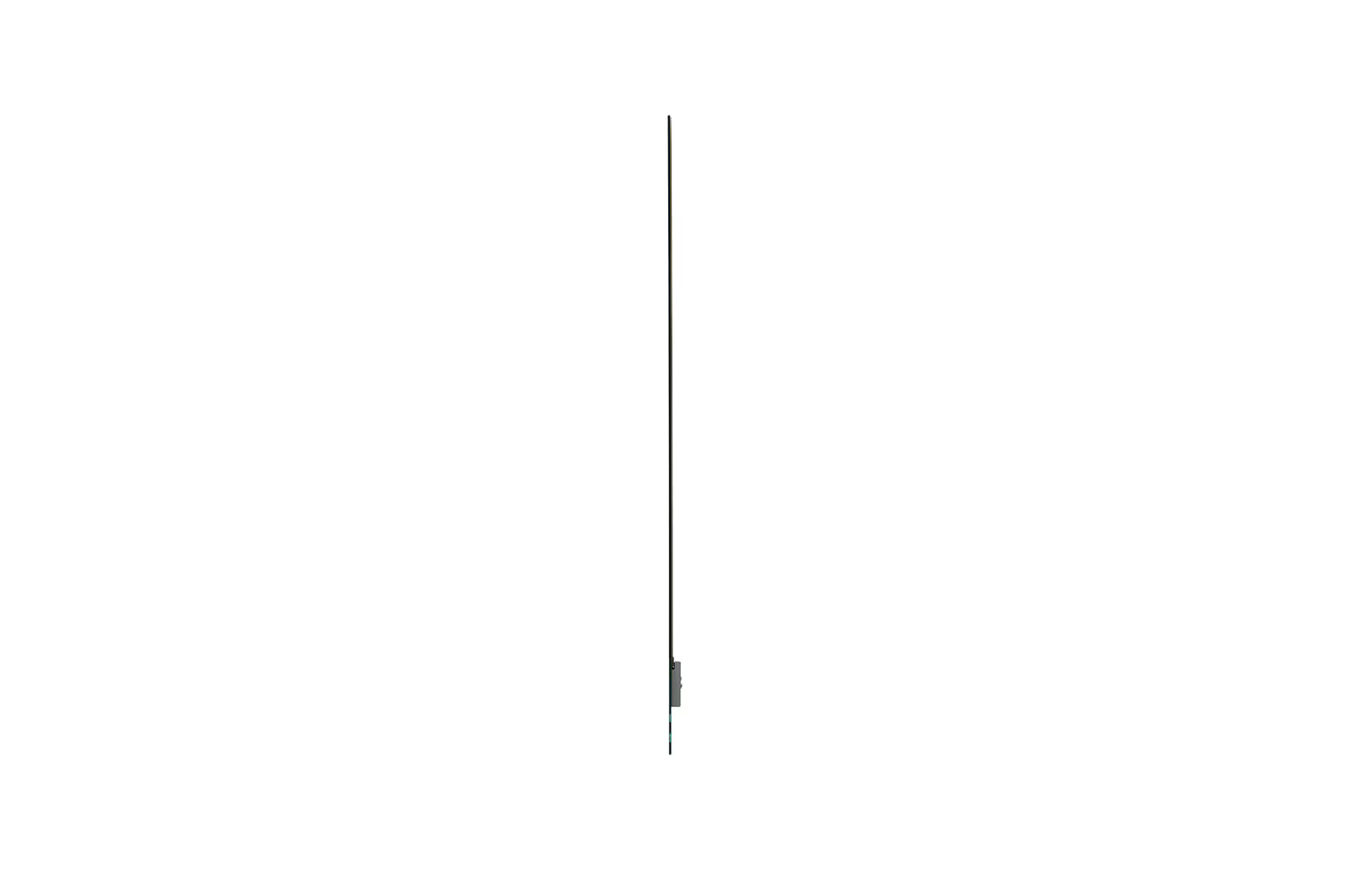

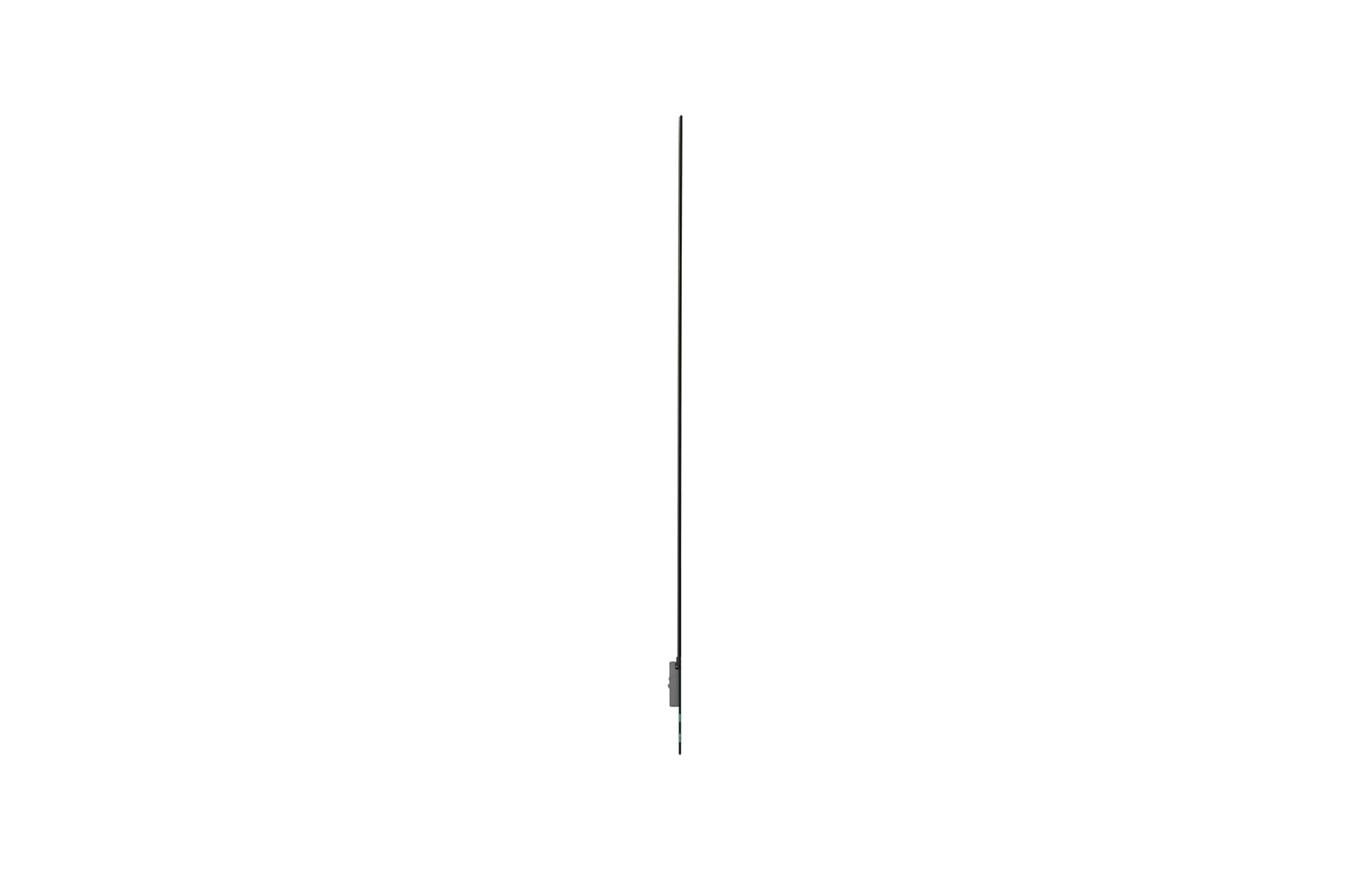

14.6mm Slim Head

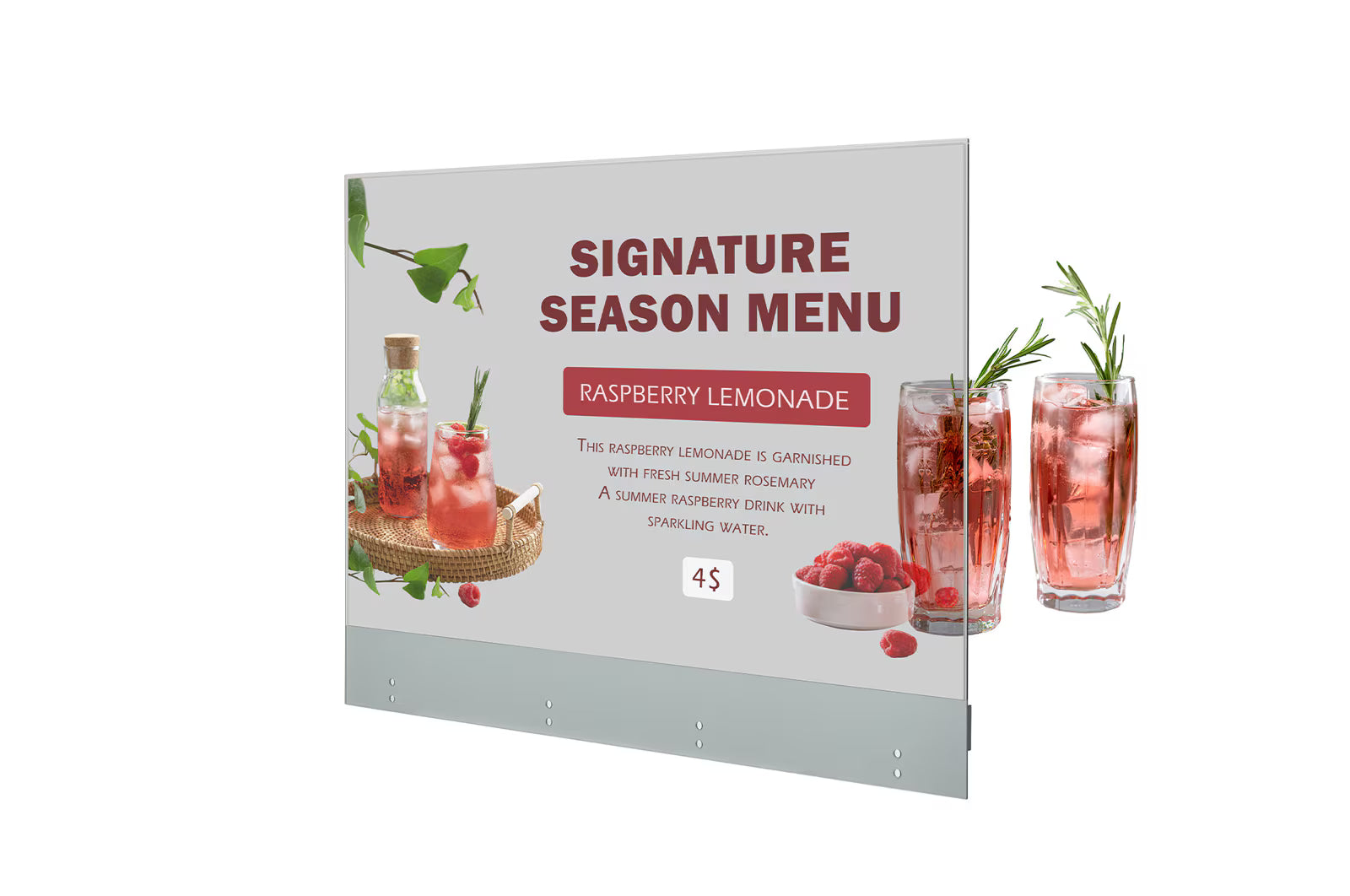

Seamless integration with existing interiors — perfect for premium retail, museums, corporate lobbies, or creative installations.
Specifications subject to change without notice.
